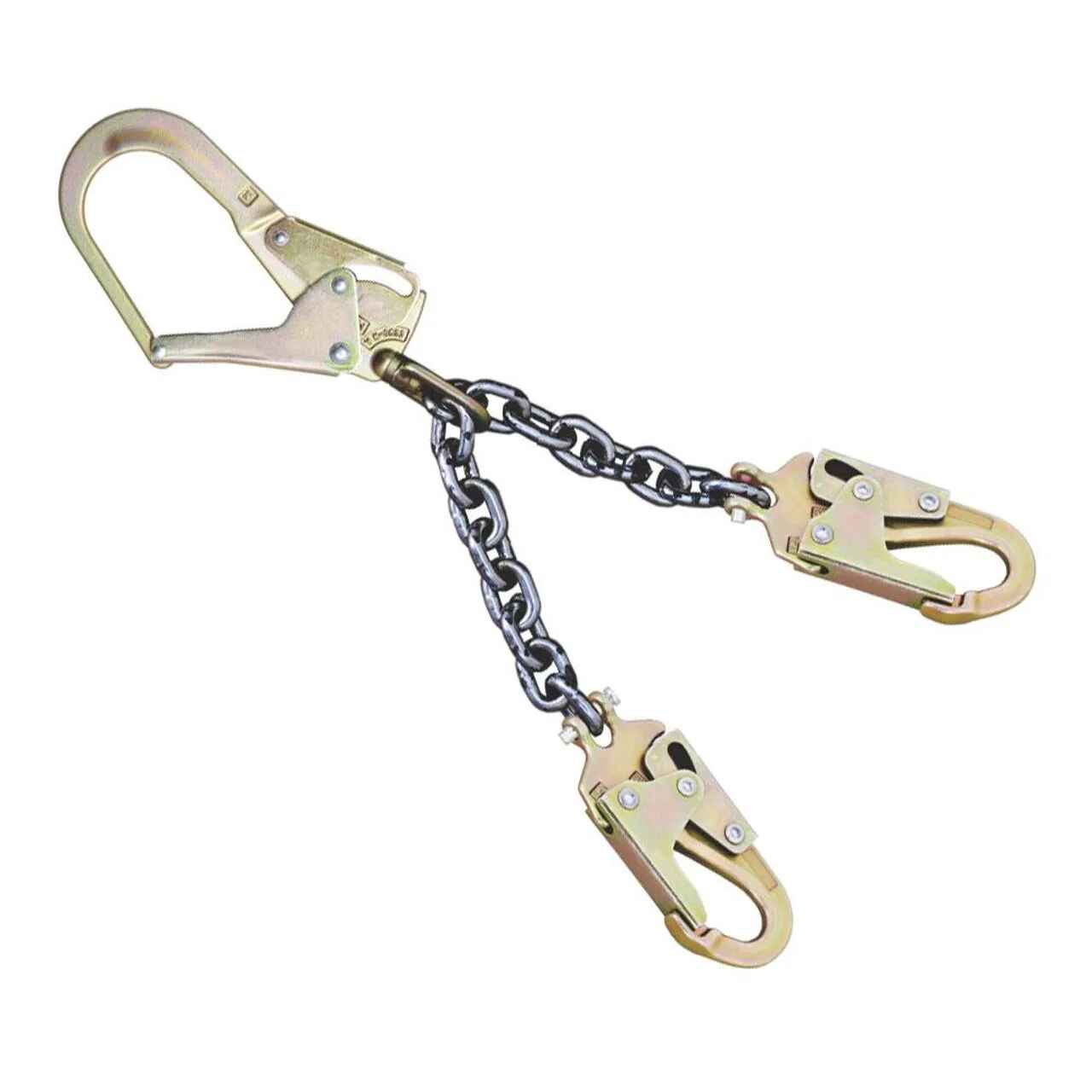

Rebar Chain Positioning Device

SKU: A00004
Sale price$79.95

Rebar chain positioning device, one 2-1/4” swivel rebar hook on top and two 3/4” snap hooks on opposite ends. Meets or exceeds ANSI Z359.3-2007.



Key Features

DESIGN:

  • Double, Y shaped lanyard.
  • This positioning device incorporates a high tensile strength chain and has swivel rebar hook.
  • The two ends of the chain have the special forged clevis snap hooks used for positioning.
  • Available Length: 24”

CHAIN:

  • 0.31” diameter link of chain
  • Grade of Chain: Grade 80
  • Tensile Strength: Min. 5000 lbs.

METAL COMPONENT:

  • Material: Alloy Steel
  • Plating: Zinc plated
  • Finish: Deburred & polished

WEIGHT:

  • 24 inch: 4.9 lbs. ± 0.2 lbs.

VITAL TEST COMPLIANCE:

  • Static Strength: 5000 lbs. for 1 minute
  • Dynamic Strength: When tested with 282 lbs. with a free fall to generate 3600 lbs. force on the receiving structure mass held clear off the ground for a period of 1 minute.
